IBM Integration Bus (IIB) can be used in order to connect applications together, regardless of the message formats or protocols that they support. It routes, transforms, and enriches messages from one location to any other location. Moein monitoring system is capable of monitoring this integration bus tool. Performance metrics of integration servers, applications, flows and their nodes are collected. The following is a list of performance indicators for IIB:

Integration Node KPIs:

1. Admin Security State
2. IIB Node Running State
3. IIB Node Number Of Integration Servers
4. IIB Node Number Of Applications
5. IIB Node Number Of Flows

Integration Servers KPIs:

1. Integration Server Running Status
2. Integration Server Number Of Applications
3. Integration Server Number Of Flows

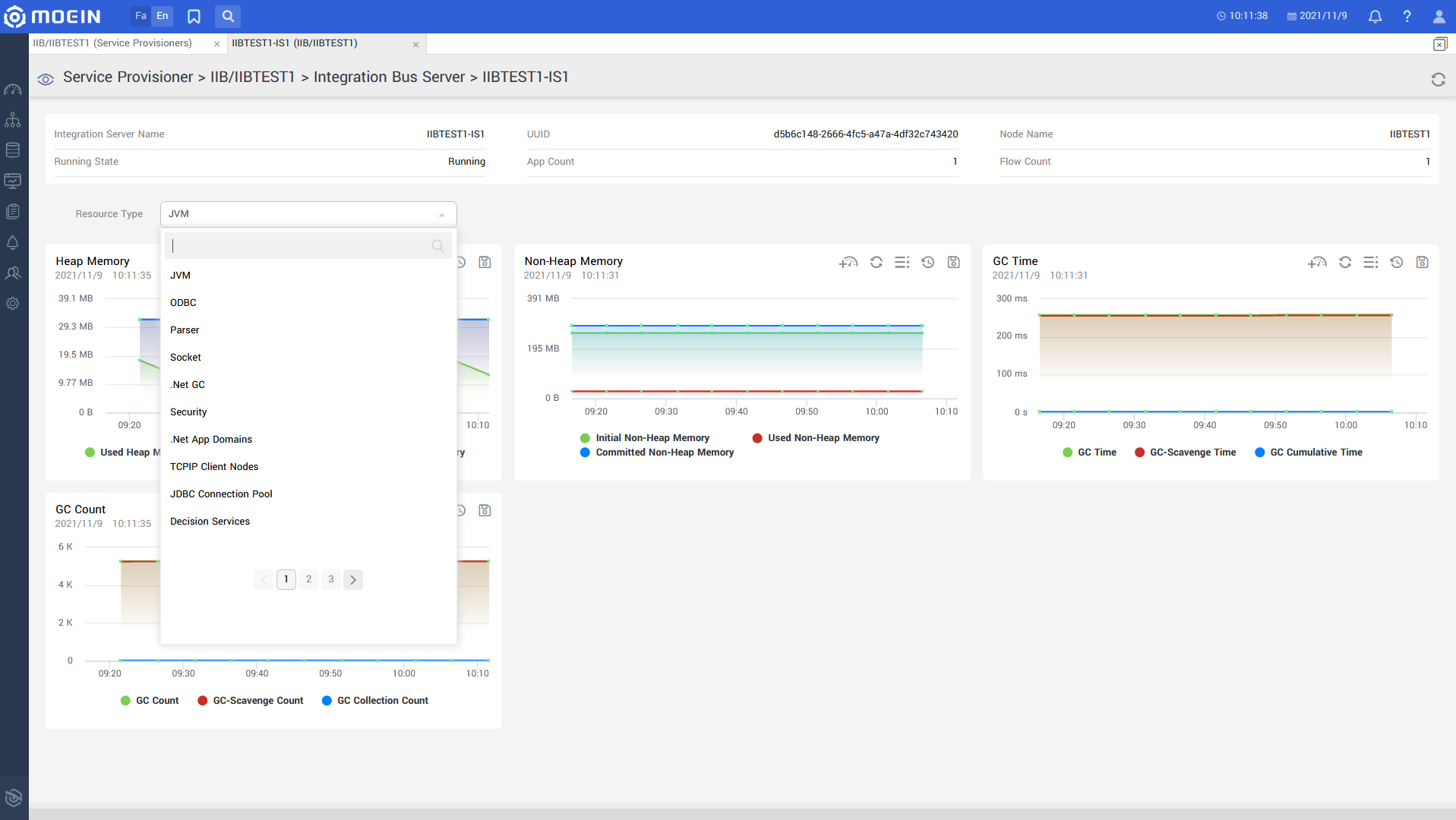

4. JVM Initial Memory
5. JVM Used Memory In Integration Server
6. JVM Committed Memory In Integration Server
7. JVM Total Memory In Integration Server
8. Integration Servers Total GCs Time
9. Integration Servers Total GCs Count
10. Integration Servers Total Garbage Collection Rate
11. Integration Servers Total GCs Time At Last Period
12. Integration Servers Average GC Time
13. Initial Heap Memory
14. Used Heap Memory
15. Committed Heap Memory
16. Max Heap Memory
17. Heap Memory Used Percentage
18. Initial Non-Heap Memory
19. Used Non-Heap Memory
20. Committed Non-Heap Memory
21. Max Non-Heap Memory
22. Non Heap Memory Used Percentage
23. ODBC Failed Execution
24. ODBC Active Connections
25. ODBC Closed Connections
26. ODBC Error Connections
27. ODBC Successful Execution
28. Parser Threads
29. Parser Approximate Memory
30. Max Of Parsed Streams
31. Max Of Written Streams
32. Parser Fields
33. Parser Reads
34. Parser Writes
35. Parser Failed Reads
36. Parser Failed Writes
37. Total Open Sockets
38. Socket Total Messages
39. Socket Total Sent Data
40. Socket Total Received Data
41. Sent Messages With Size 0 To 1KB
42. Sent Messages With Size 100KB To 1MB
43. Received Messages With Size 0 To 1KB
44. Received Messages With Size 100KB To 1MB
45. Sent Messages With Size 1 To 10KB
46. Sent Messages With Size 1 To 10MB
47. Sent Messages Over 10MB
48. Received Messages With Size 1 To 10KB
49. Received Messages With Size 1 To 10MB
50. Received Messages Over 10MB
51. Sent Messages With Size 10 To 100KB
52. Received Messages With Size 10 To 100KB
53. dotNET Explicit Number Of GCs
54. dotNET Completed GEN0 GCs
55. dotNET Completed GEN1 GCs
56. Completed GEN2 GCs
57. dotNET GC Total Committed In All Heaps
58. dotNET GC Total Reserved In All Heaps
59. dotNET GC GEN0 Heap Size
60. dotNET GC GEN1 Heap Size
61. dotNET GC GEN2 Heap Size
62. dotNET GC Large Object Heap Size
63. dotNET GC Promoted Object Size From GEN0 To GEN1
64. dotNET GC Promoted Object Size From GEN1 To GEN2
65. MQTT Subscriber Received Data
66. MQTT Publisher Sent Data
67. MQTT Closed Connections
68. MQTT Failed Connections
69. MQTT Subscriber Received Messages
70. MQTT Publisher Sent Messages
71. MQTT Open Connections
72. JMS Open Connections
73. JMS Closed Connections
74. JMS Open Sessions
75. JMS Closed Sessions
76. Received Messages By JMS Receive Or JMS Input
77. JMS Sent Messages
78. Browsed Messages By JMS Receive
79. JMS Failure Connections

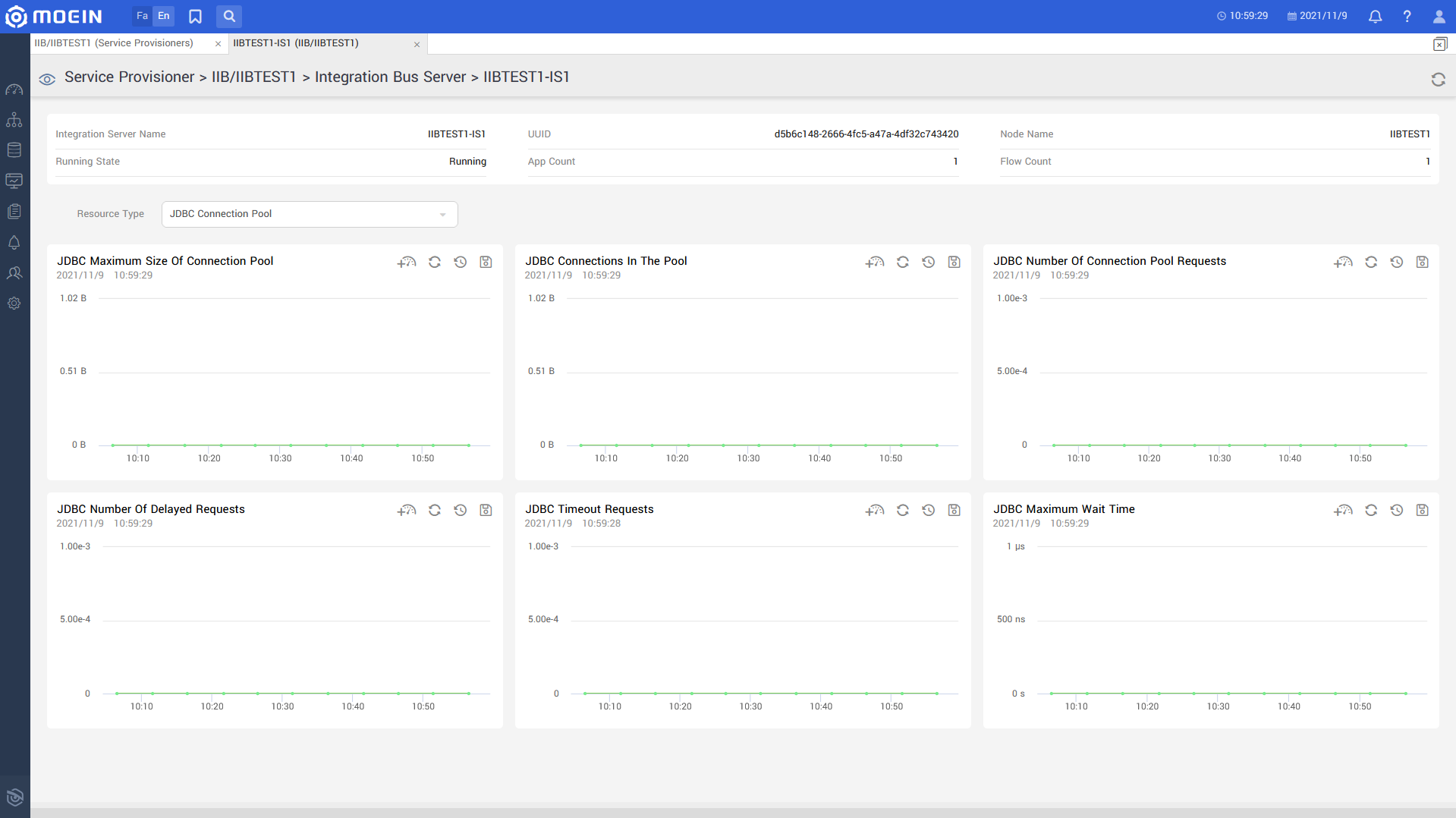

JDBC ConnectionPool KPIs of Integration Node:

1. JDBC Maximum Size Of Connection Pool
2. JDBC Connections In The Pool
3. JDBC Number Of Connection Pool Requests
4. JDBC Number Of Delayed Requests
5. JDBC Maximum Wait Time
6. JDBC Timeout Requests

Garbage Collection KPIs of Integration Node::

1. Garbage Collection Count
2. Garbage Collection Rate
3. Garbage Collection Time
4. Average Garbage Collection Time

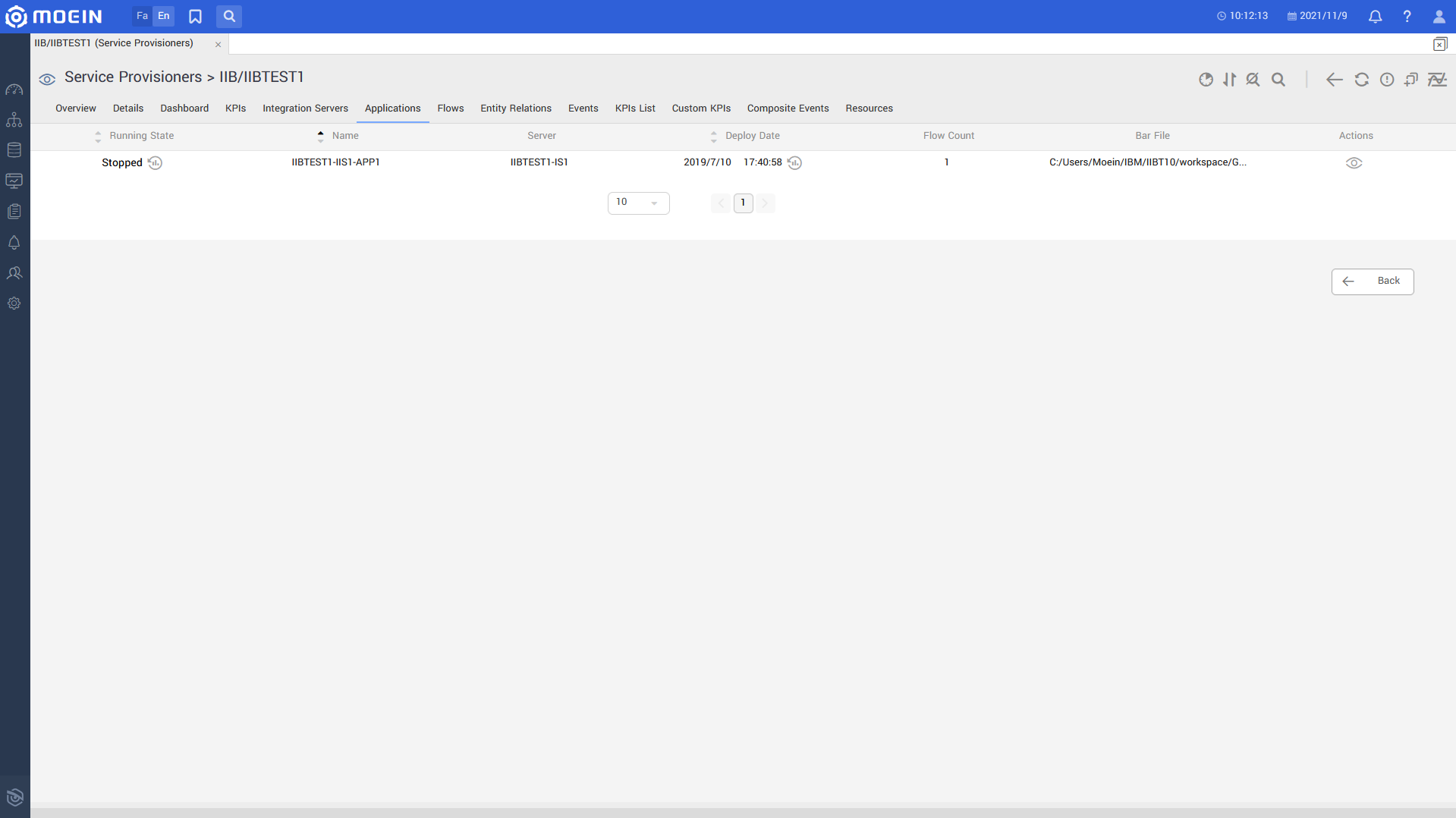

Application 's KPIs :

1. list of applications
2. Application Running Status
3. Application Deploy Date
4. Application Start Date
5. Application Modification Date
6. Application Number Of Flows

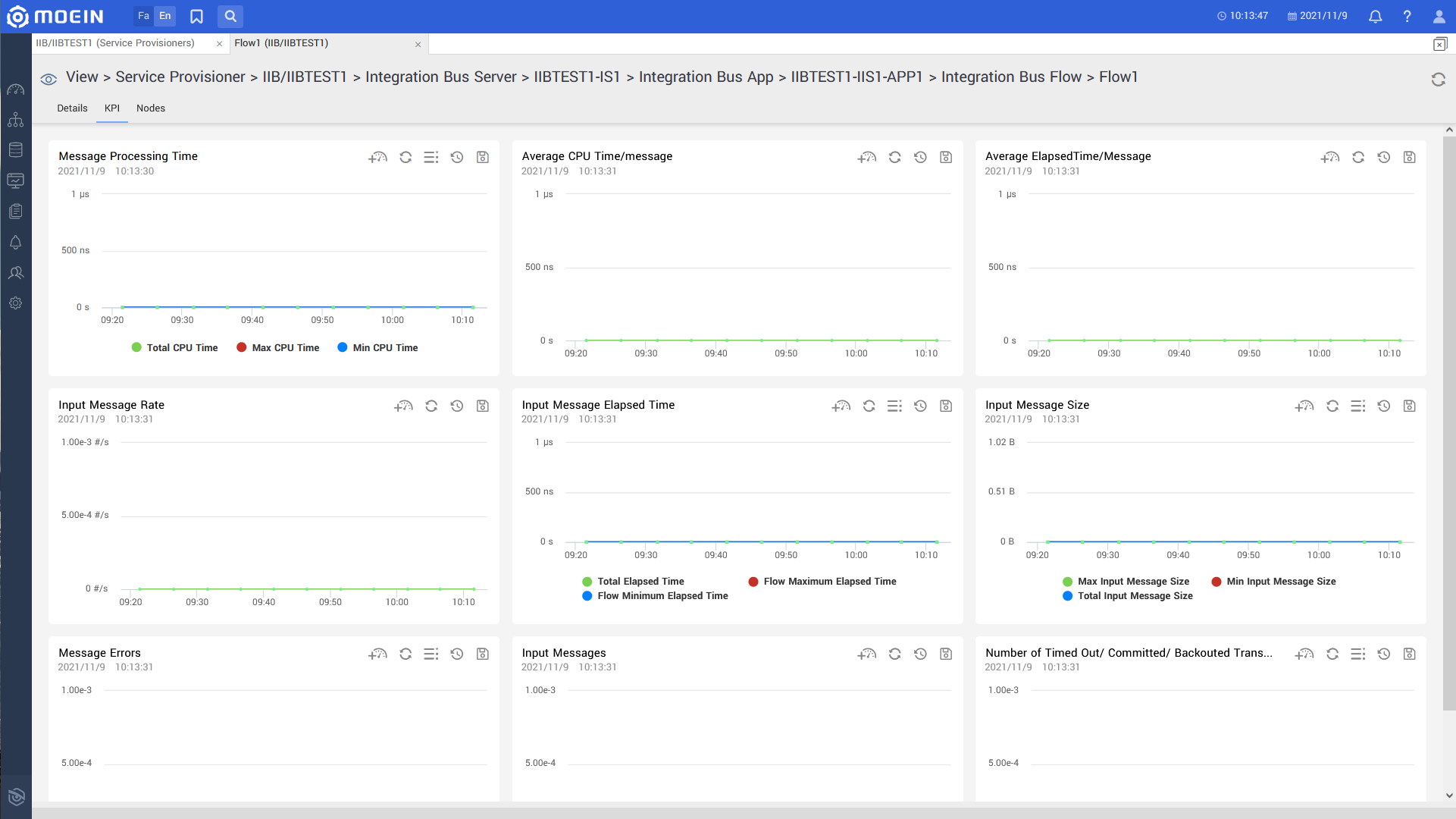

flow's KPIs:

1. list of flows
2. Flow Number Of Nodes
3. Flow Start Date
4. Flow Modification Date
5. Flow Running Status
6. Input Message Rate
7. Average ElapsedTime/Message
8. Average CPU Time Per Message
9. Total Elapsed Time
10. Flow Maximum Elapsed Time
11. Flow Minimum Elapsed Time
12. Total CPU Time
13. Max CPU Time
14. Min CPU Time
15. Flow Message Average CPU Time
16. Input Messages
17. Total Input Message Size
18. Max Input Message Size
19. Min Input Message Size
20. Flow Threads Count In Pool
21. Flow Maximum Reached Thread Count
22. MQ Error Count
23. Count Messages With Error
24. Processing Error Count
25. Timeout Transactions
26. Committed Transactions
27. Backout Transactions

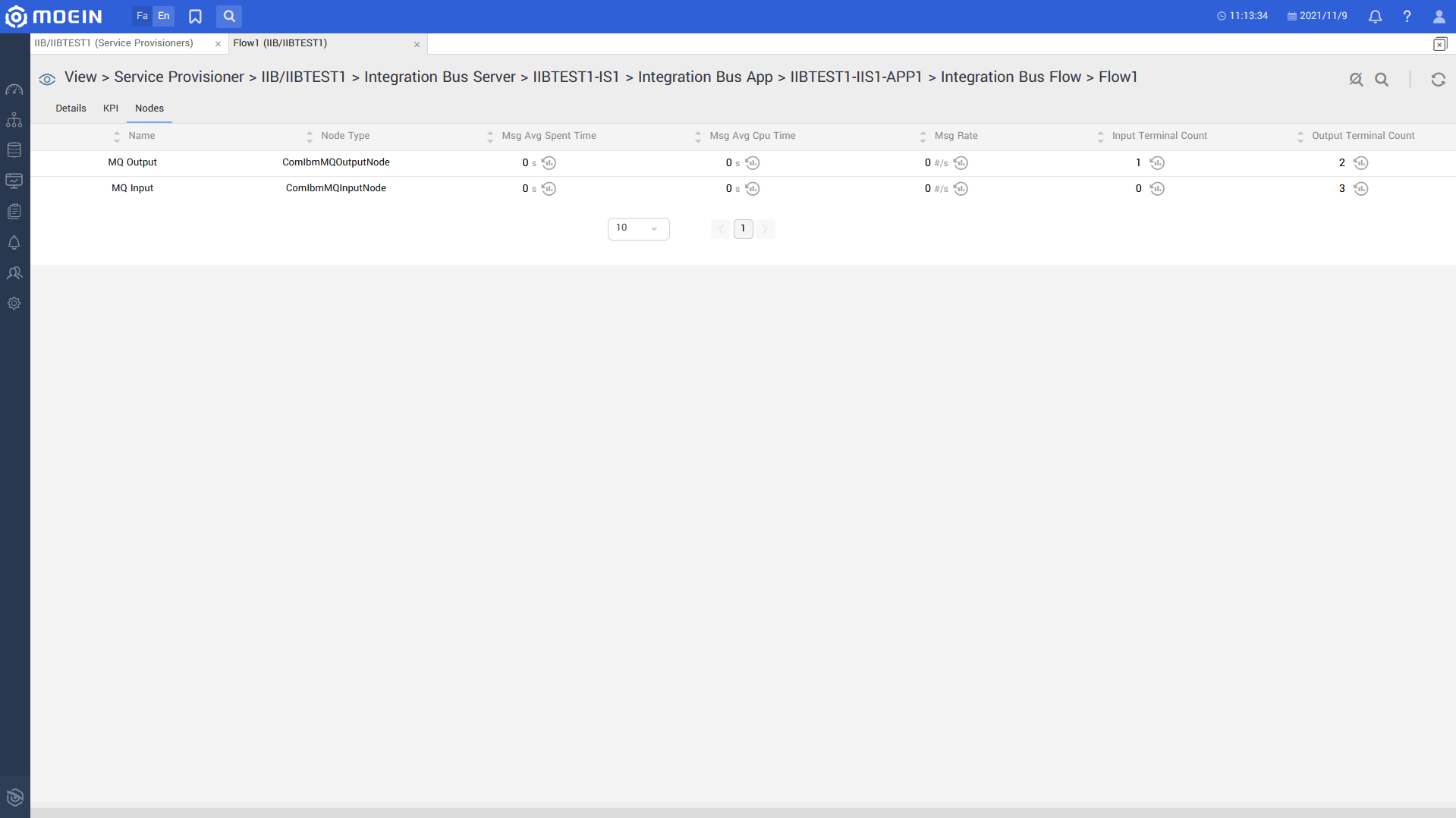

Flow Node's KPIs:

1. Flow Node Average Elapsed Time Per Message
2. Flow Node Average CPU Time Per Message
3. Flow Node Message Rate
4. Flow Node Input Terminal Count
5. Flow Node Output Terminal Count

Communication Protocols:

• REST
• MQTT
